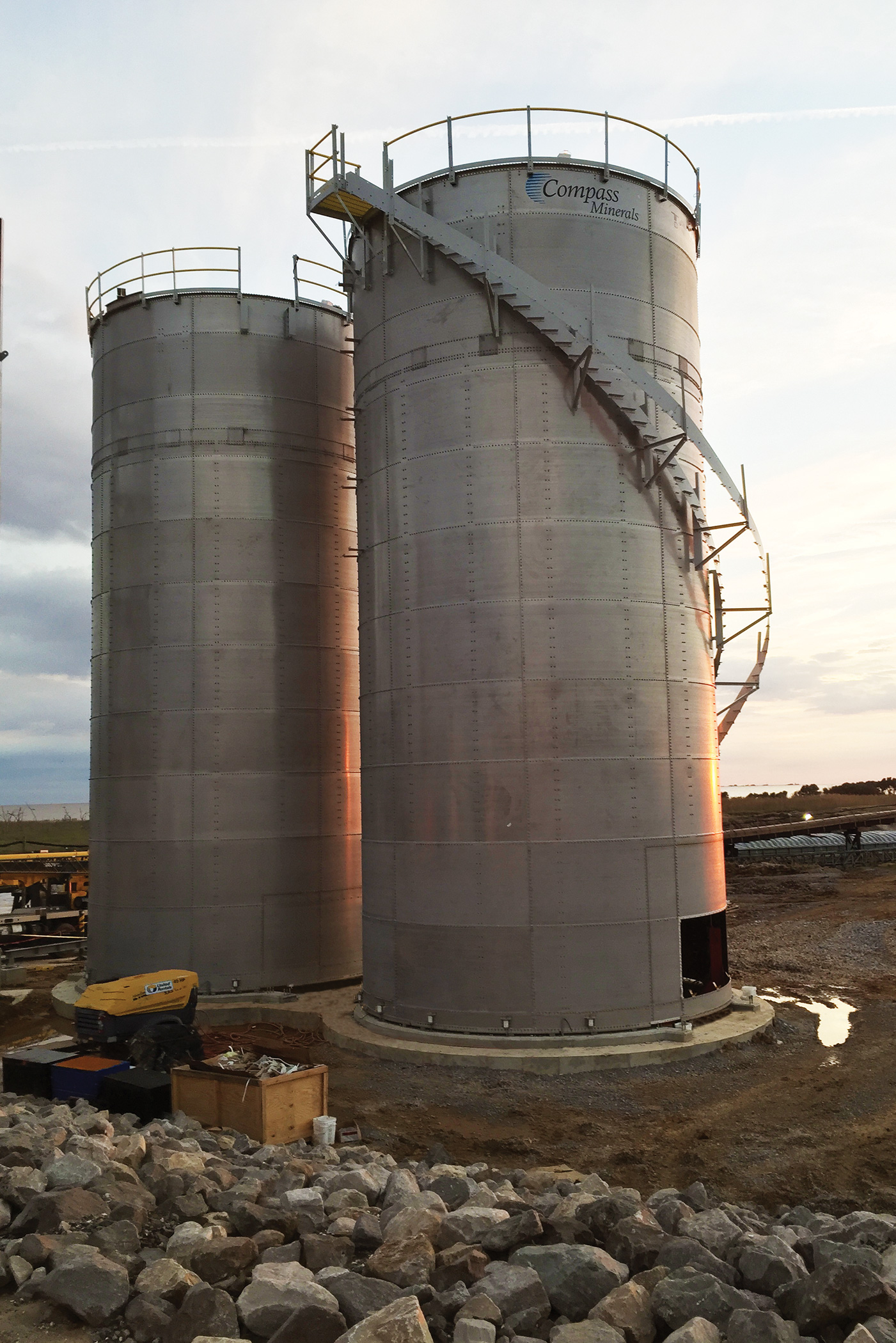

Dry Bulk Storage.

Tank Connection – Parsons, KS

ISO 9001 Certified QMS Company

Bolted RTP rolled tapered panel design. Installed Worldwide.

• Diameters to 47.53’+
• Bolted RTP rolled tapered panel design (10’ W X 5’H)
• Installation; Trained Crews utilize a synchronized jack process
• EMR rating (EMR .59)-Erection at grade level
• Hopper Bottom designed for Funnel or Mass Flow of media
• Proprietary process Fusion Bonded Epoxy Powder Base & SDP Top coat
• FDA 21 CFR 175.300 certified
• Parts & Service - RTP bolted silos and aluminum domes

Pittsburgh Tank Corp. – Monongahela, PA

• Silo Diameters; Shop Weld to 16’, Field Weld (KD) to 36’
• Materials of construction; Carbon Steel, Stainless Steel, Aluminum
• Hoppers, single, double, chisel cone – Square Bins
• Bin Activators
• ASME Sect VIII Div. 1 Horizontal & Vertical tanks
• Skirt, Leg or Gusset supported
• Coatings per manufacturer & SSPC specifications
• Steel support structure design and installation available by others

Please refer to Resources for comprehensive data

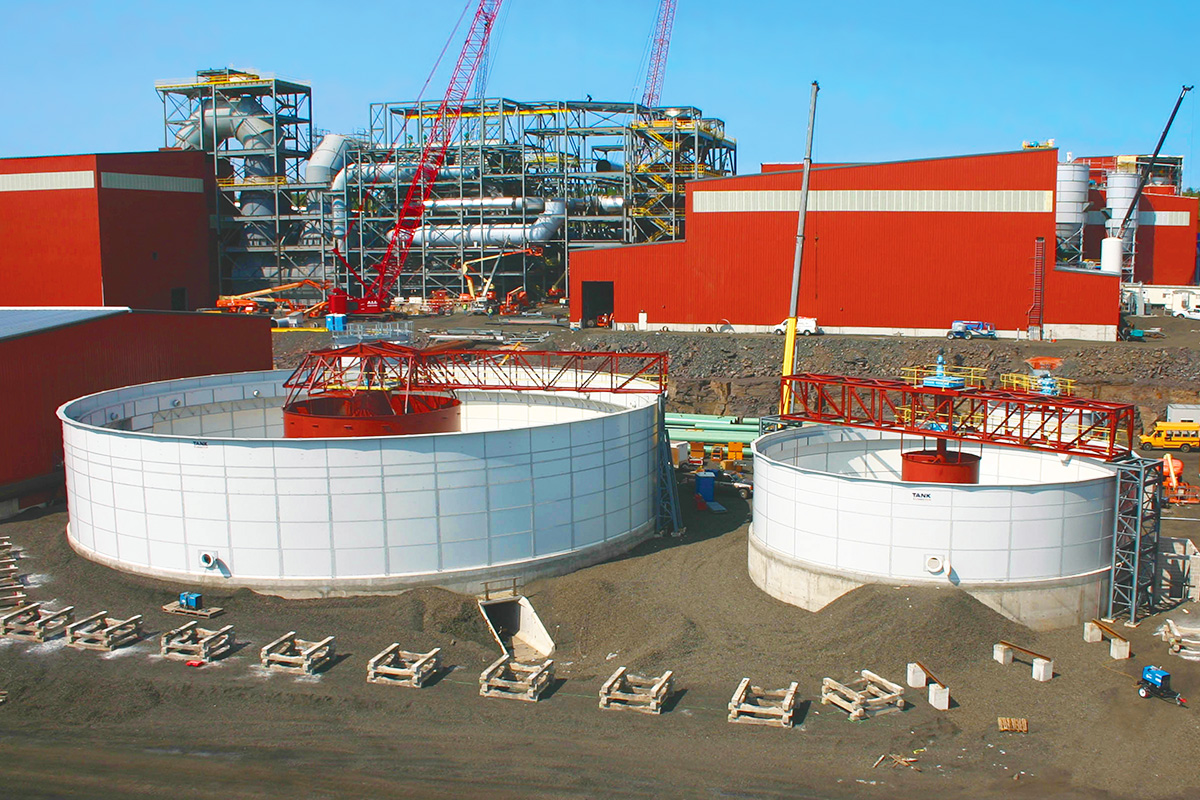

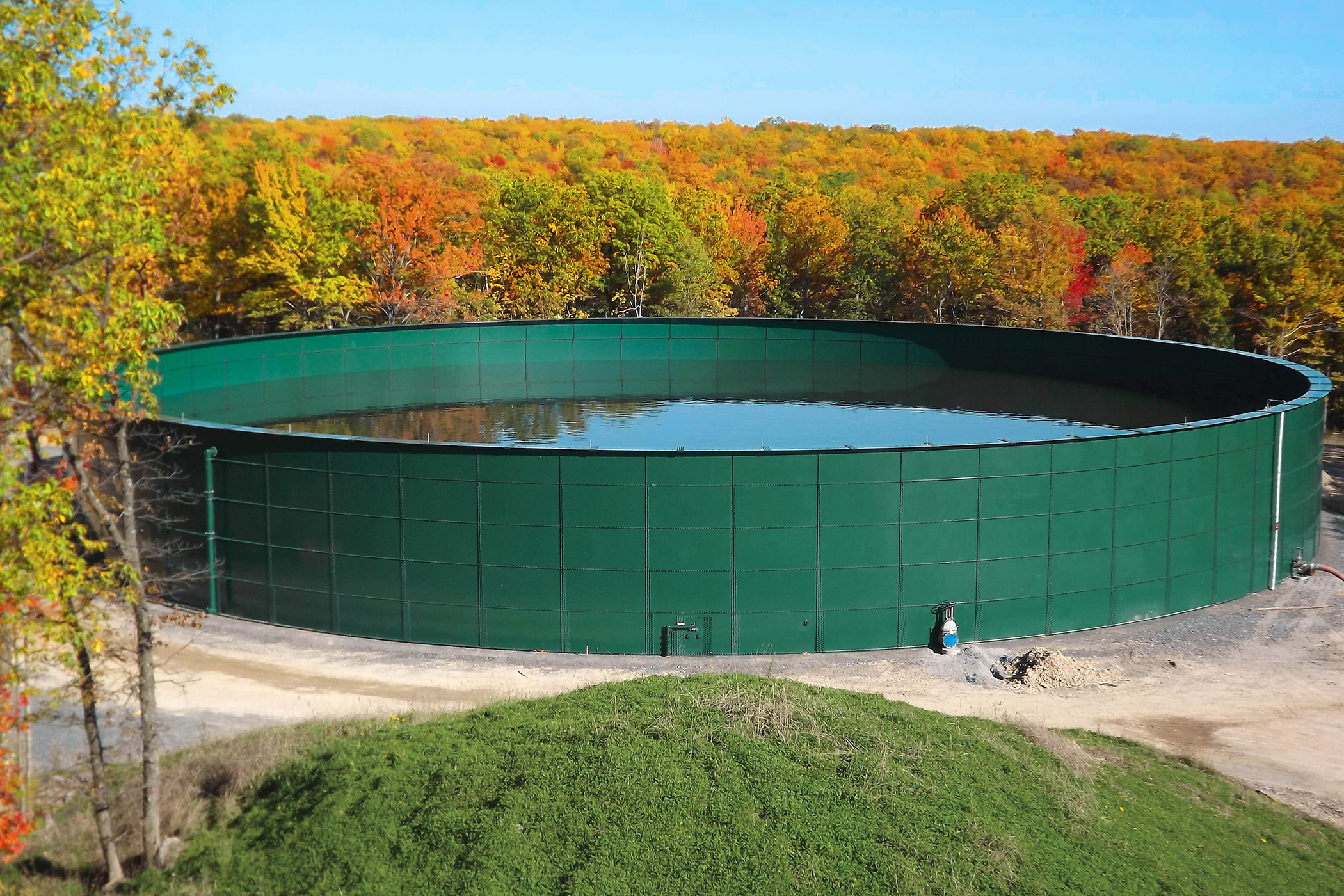

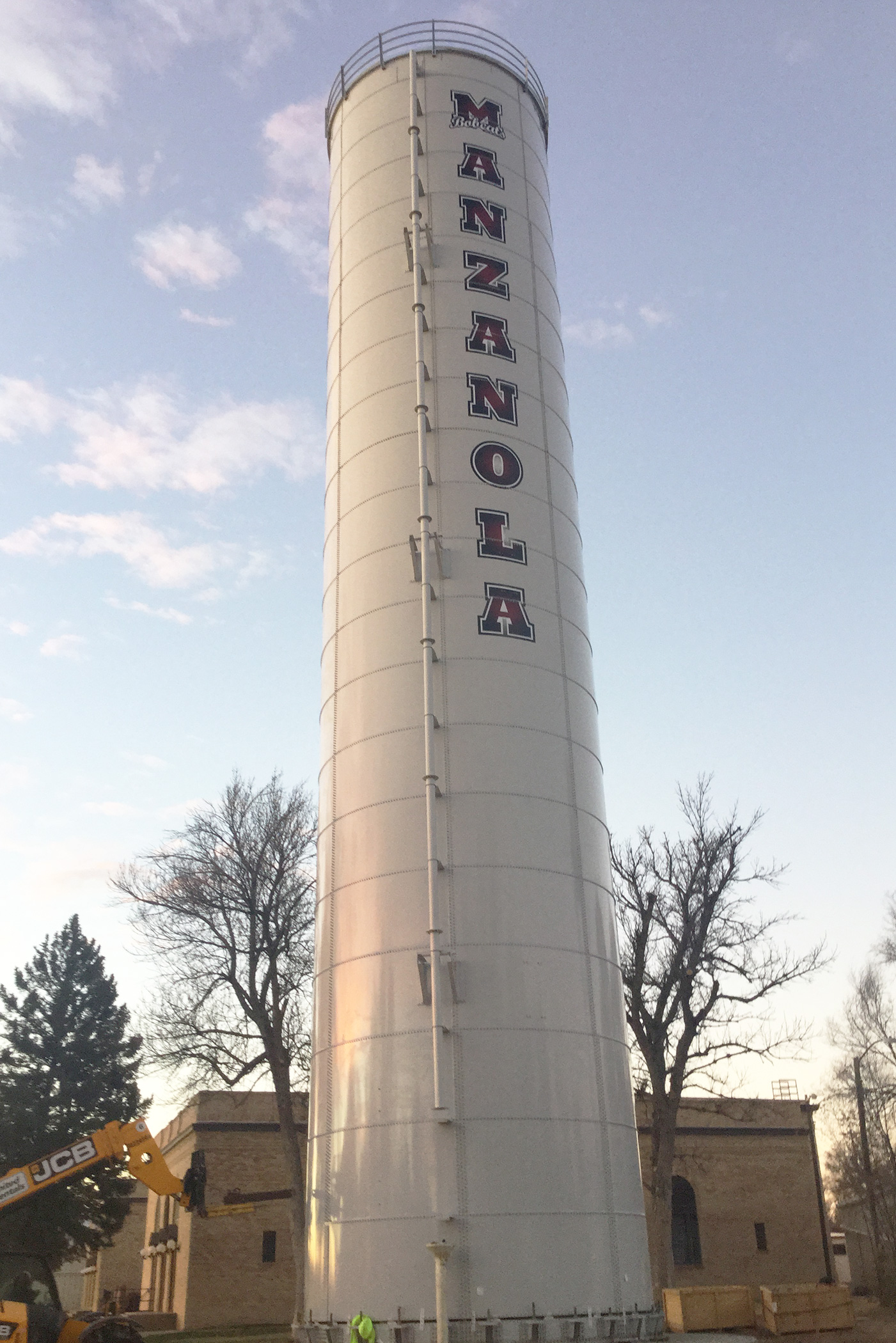

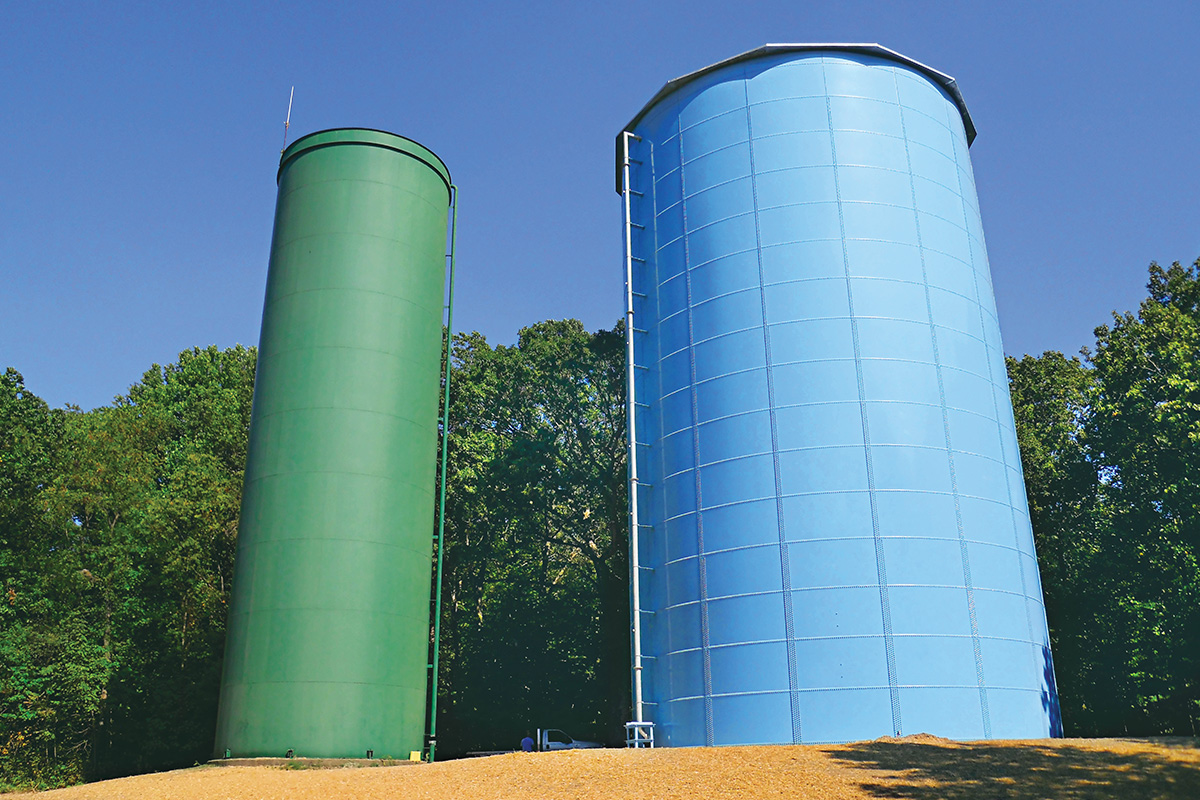

Liquid Containment.

Tank Connection – Parsons, KS

ISO 9001 Certified QMS Company

Bolted RTP rolled tapered panel design. Installed Worldwide.

• Capacities to 8.2 million gallons, for AWWA D103 applications
• Water NSF/ANSI std 61/ Wastewater

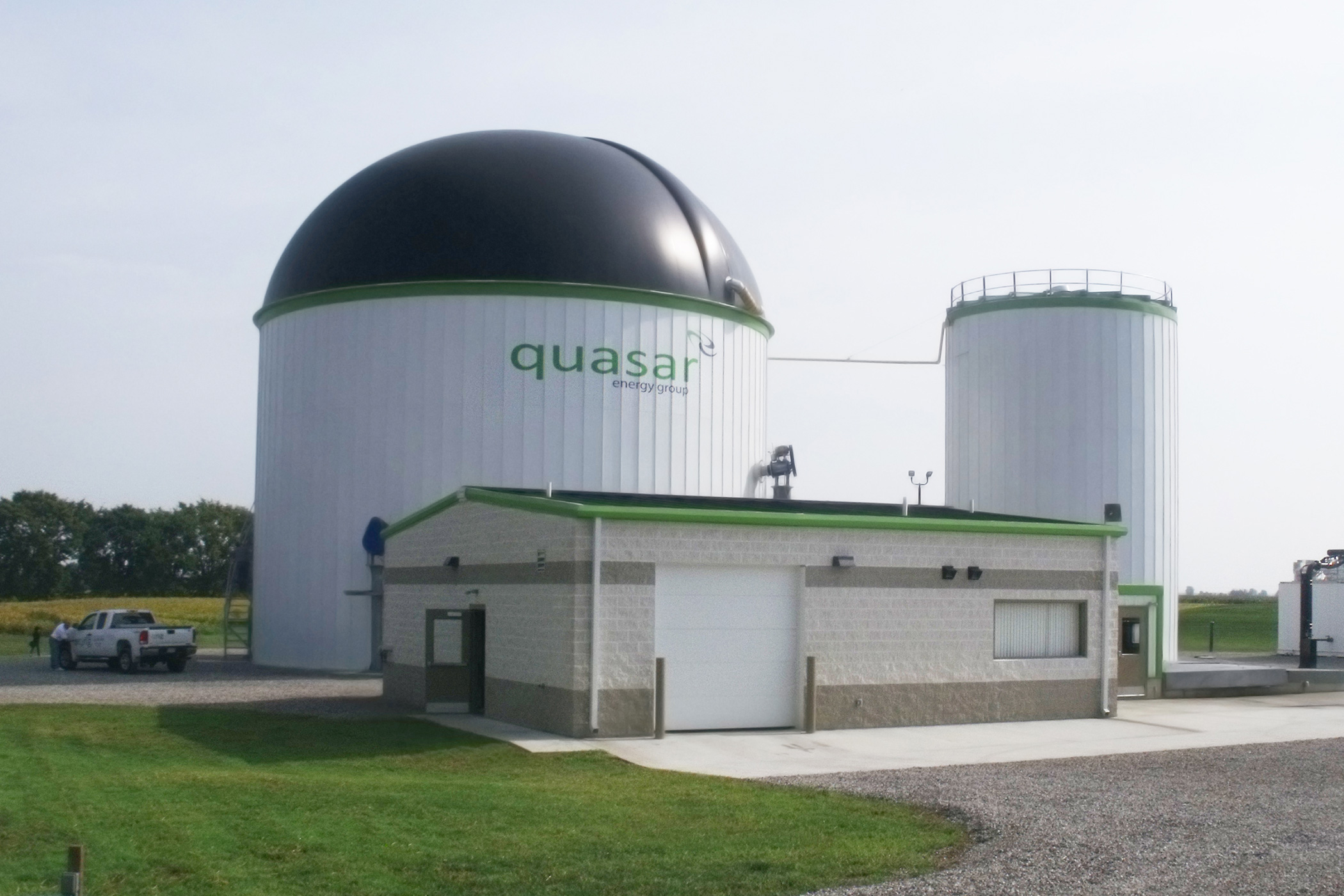

• Digesters
• Fire Protection FM & NFPA 22
• Sludge & Slurries
• Proprietary process, Fusion Bonded Epoxy Powder Base, SDP Top coat
• Installation Trained Crews utilize a synchronized jack process
• EMR rating (EMR .59)-Erection from grade level
• Parts & Service - RTP bolted tanks and aluminum domes
• APEX Aluminum Domes

Pittsburgh Tank Corp. – Monongahela, PA

• Silo Diameters; Shop Weld to 16’, Field Weld (KD) to 36’
• Materials of construction; Carbon Steel, Stainless Steel, Aluminum
• Industrial, Water/Wastewater, etc.
• ASME Sect VIII Div. 1 Horizontal & Vertical tanks
• Skirt, Leg or Gusset supported
• Coatings per manufacturer & SSPC specifications

Please refer to Resources for comprehensive data

Fire Protection.

Tank Connection Fire Protection tanks shipped Worldwide.

• RTP Bolted tanks
• Proprietary process FBE fusion bonded epoxy powder coat is NSF-61 certified
• Standard limited warranty interior 5 years, exterior SDP coating 3 years
• Supply and Installation of components for complete water storage system
• Vertical standing seam insulation R value 12.9
• Tank immersion heater – maintain 42f at -10f ambient – element removal without draining tank



Shop Fabricated Vessels & Bins.

Pittsburgh Tank Corporation Monongahela, PA.

Engineering and Fabrication of stacks, process vessels, and Square Bins.

• Materials of construction CS, SS, AL
      - Diameters to 16’ Shop Weld
      - Diameters to 36’ Field Weld (knocked down)
• Design Codes AWS, ASME, AISC, AWWA, API, UBC, SBC, BOCA, OSHA
      - ASME-U Stamped Facility - Unfired Pressure Vessels
      - PV Code Section VIII, Division 1
• AWS QC-1 Inspection Certificates
• API 12F/Q1 Monogram - oil field production liquids
• Destructive and Non-Destructive testing on contract basis
• Coating systems, per specifications

Please refer to Resources for comprehensive data

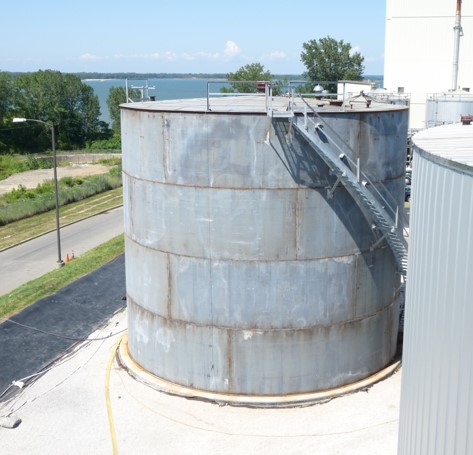

Field Weld Tanks & Structures.

Phillips Tank & Structure Braddock, PA

Tank design, fabrication and construction of above-ground field welded storage tanks and other related steel and aluminum structures.

Licensed, insured for general, structural and field weld storage tank construction and repair.

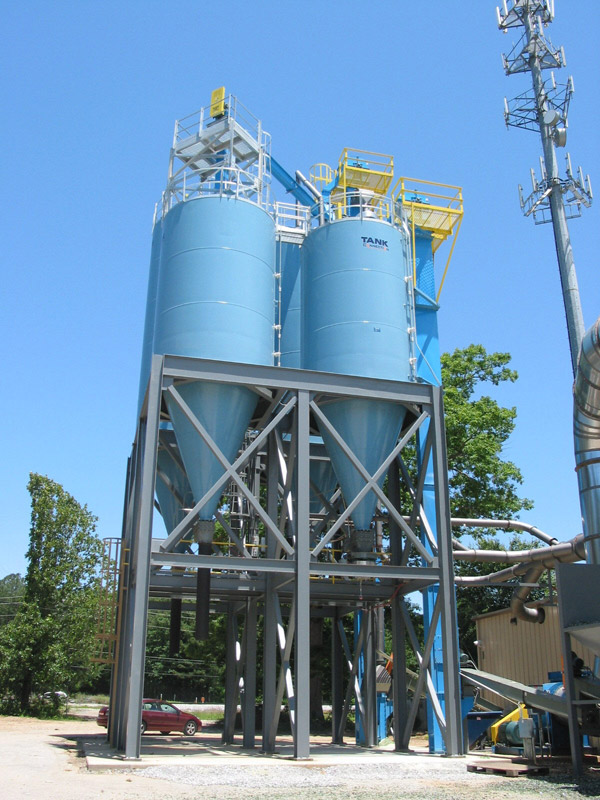

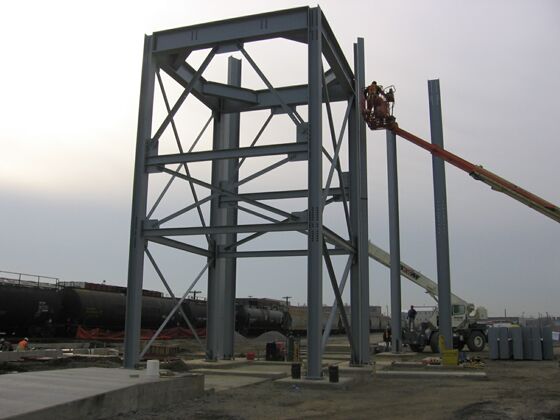

• Silo (short skirt or flat bottom) support structure design and installation.
• PE stamps for 50 states plus 4 Canadian provinces
• New tank design API 650,653, AWWA 12D 100
• 3D design and detailing of stairs, platforms and other structural components
• Tank repair API 653
• Internal and external floating roof installation (steel / aluminum)
• Floating roof seal installation
• Installation of digester covers

Please refer to Resources for comprehensive data
